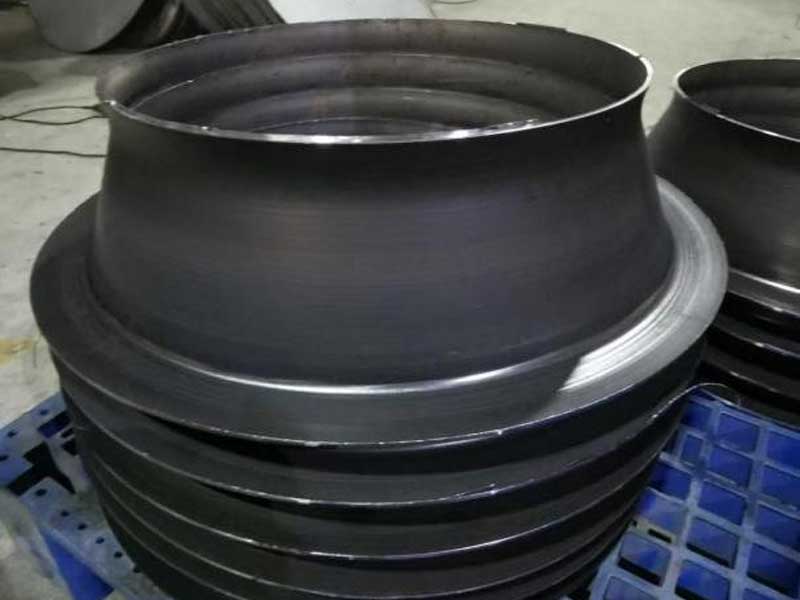

CNC Sheet Metal Spinning Machine For Fan Inlet Outet Cone Manuafacturing

Product Description

•
• 1. XUANYA2020 v1.0 spinning programming system

  2. Imported guide rails are wear-resistant, high-precision, long service life and guaranteed quality.

  3. High rigidity and heavy load ball screw pair. Double nut design, infinite self-circulation of balls, sufficient lubrication.

  4. Floor-standing integral bed. Stability is especially important for heavy-duty models.

  5. One-piece heavy-duty forged spindle unit. It is one of the important functions of machine tools. For a long and stable service life, the spindle is crucial.

  6. Driven by double tail jack cylinders. This structure is different from the limitations of the direct-acting stroke of the single tail jack cylinder of the traditional model, and avoids the lack of rigidity caused by the extension of the single tail jack cylinder too long and the lack of rigidity caused by the long cantilever. Driving the top cylinder can effectively avoid the above disadvantages.

Product parameters

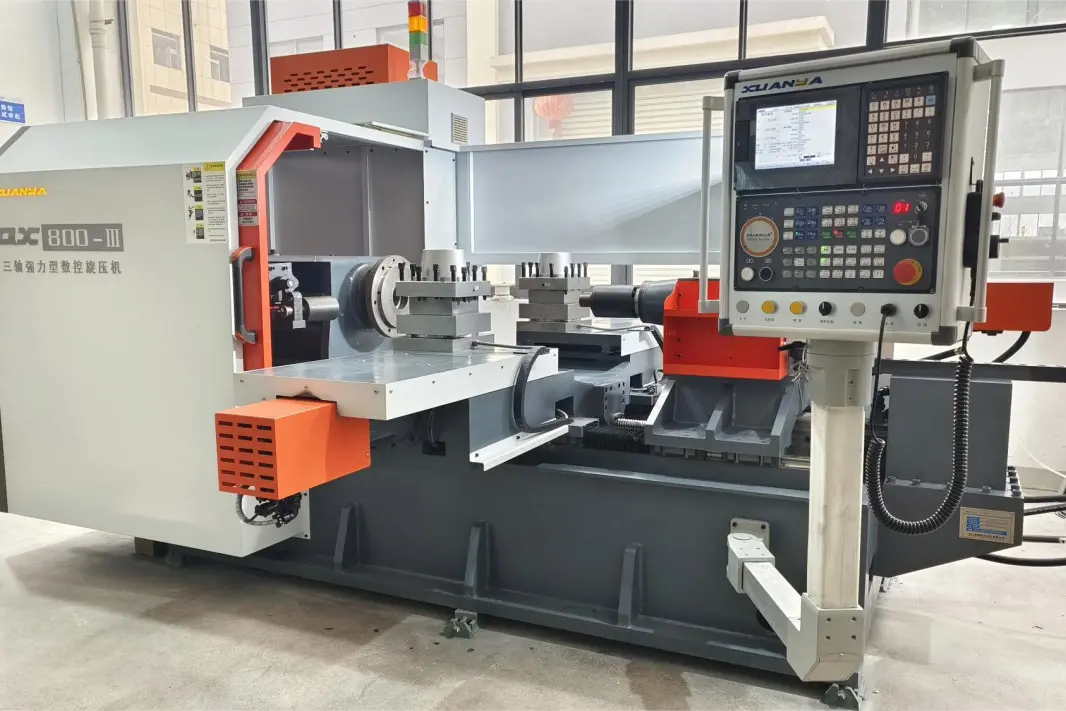

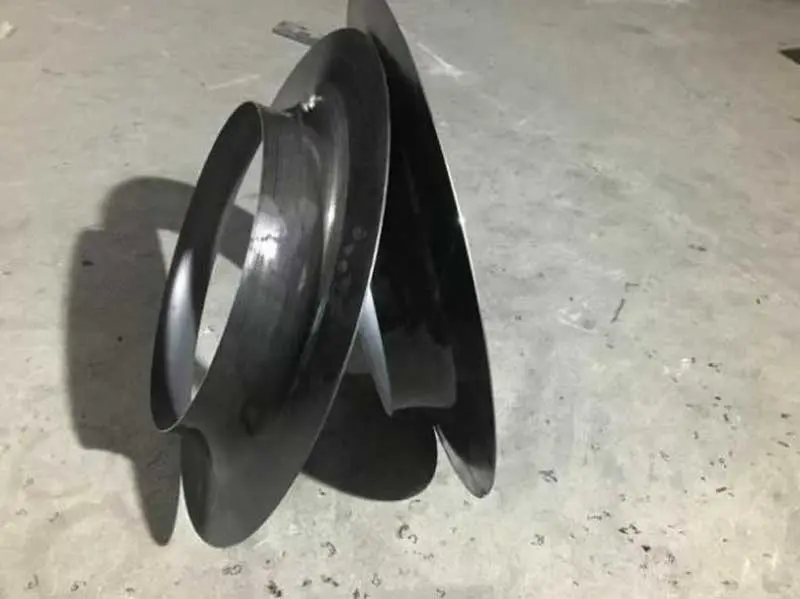

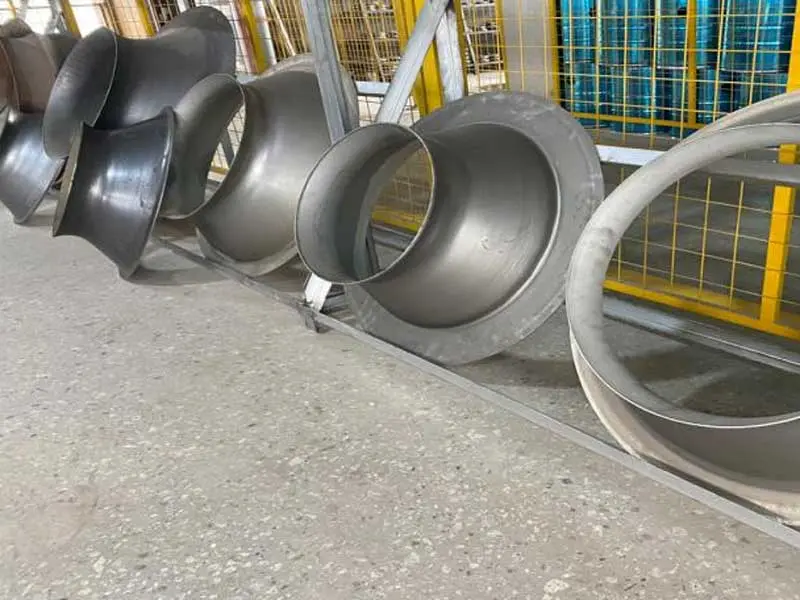

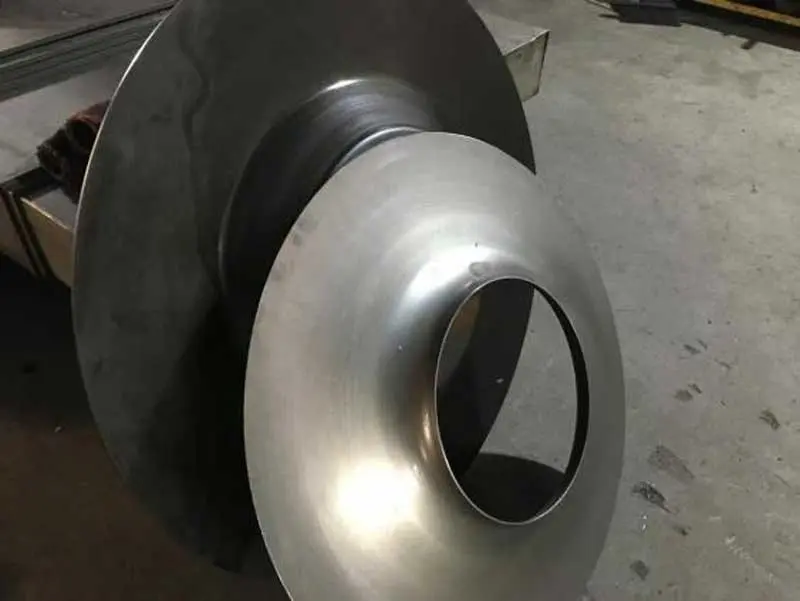

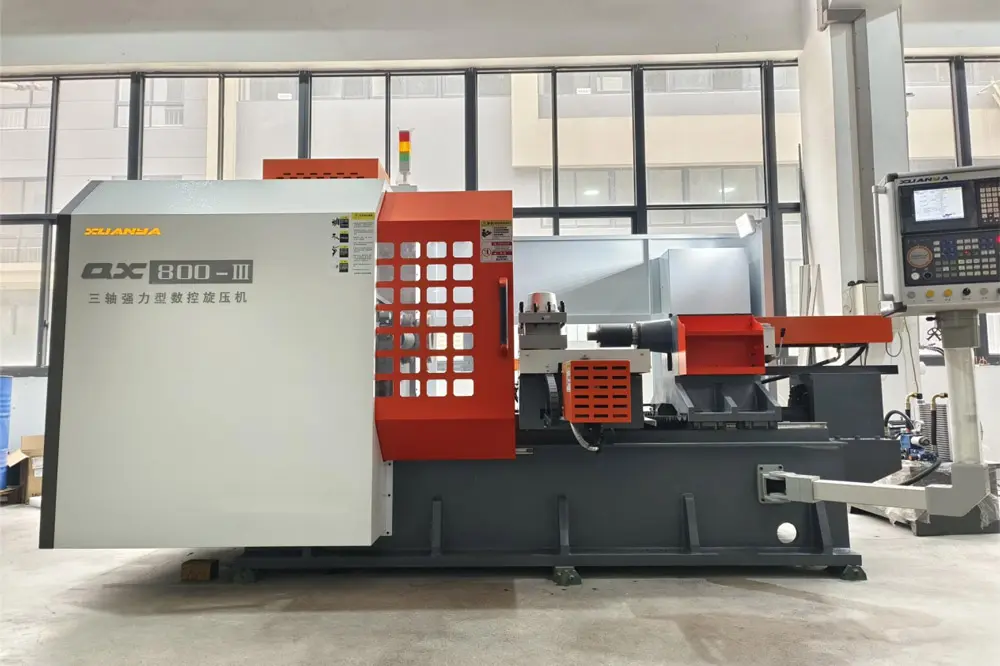

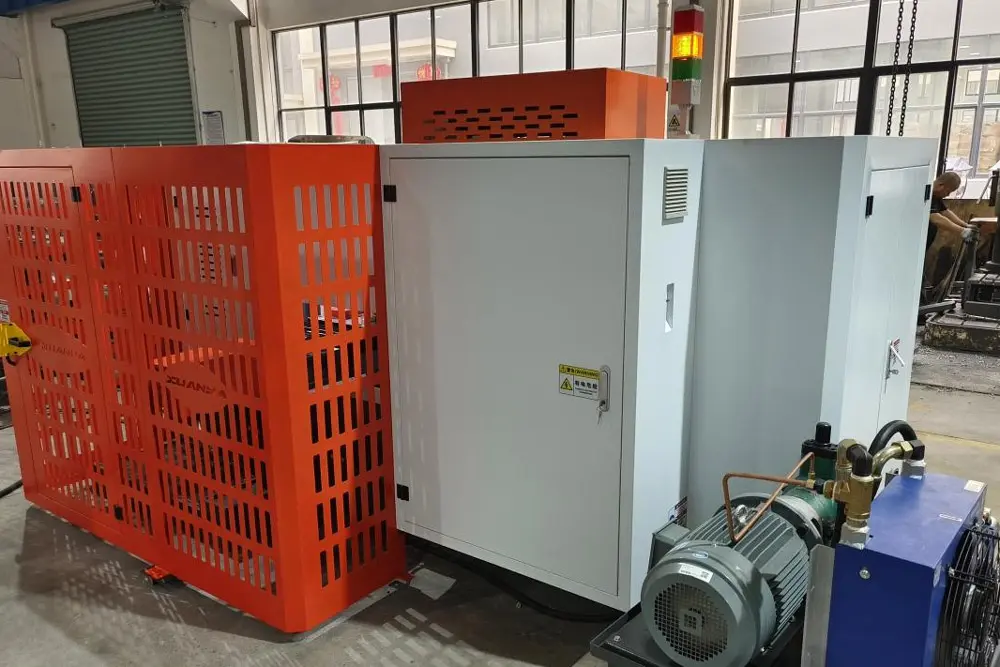

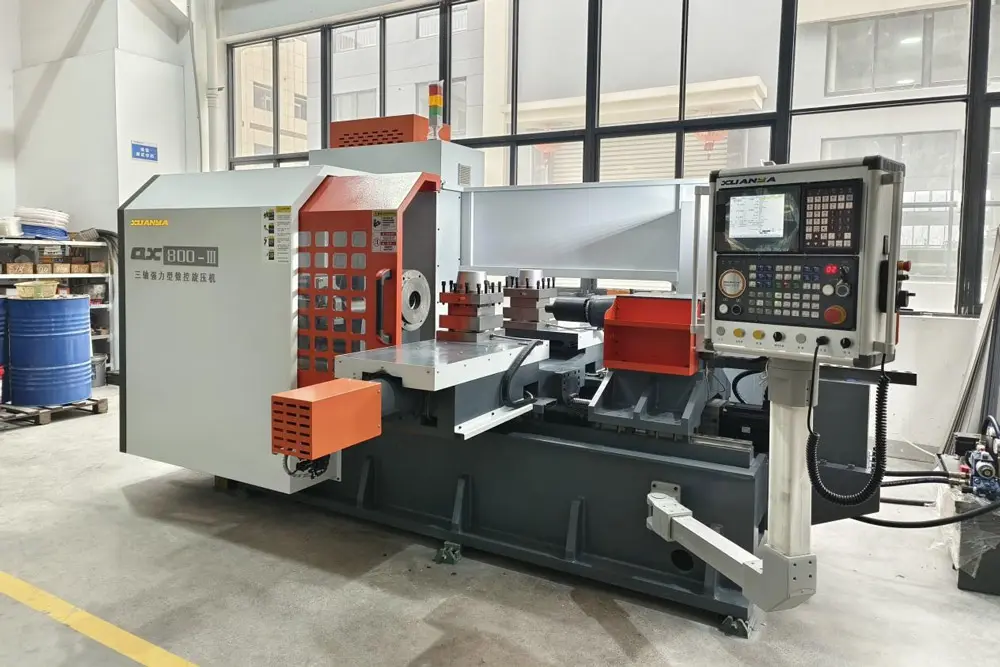

Product Image Display
